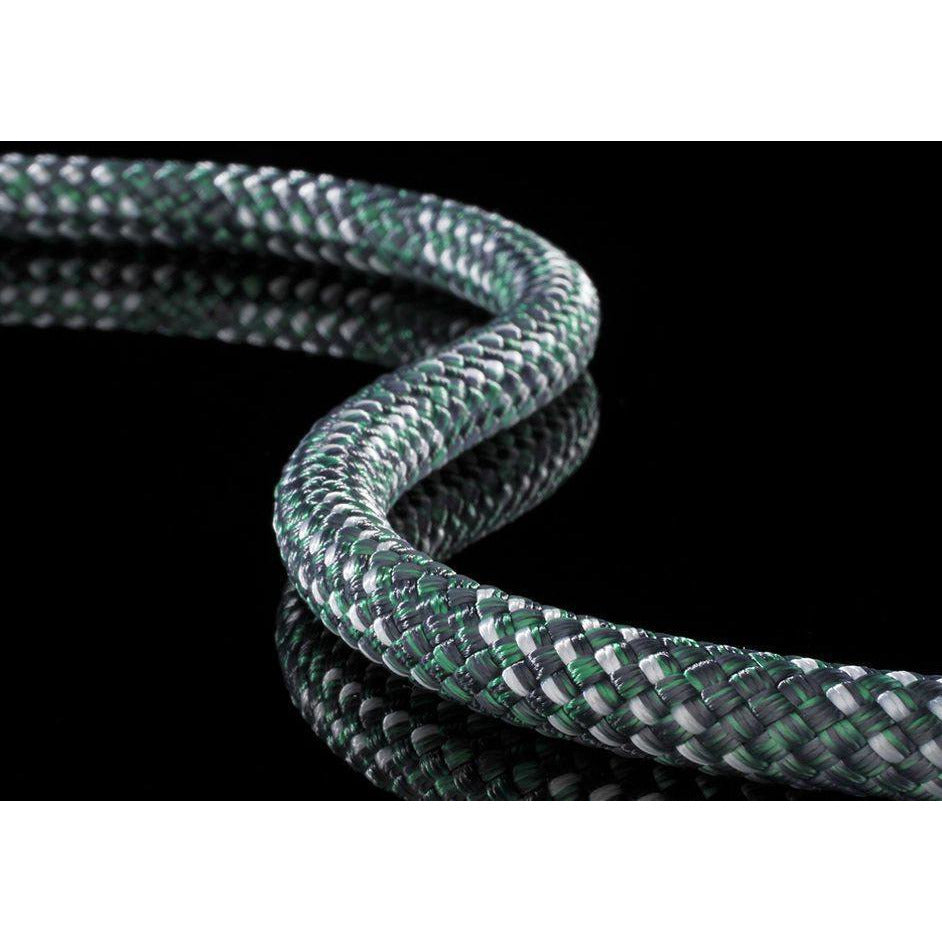

Platinum Protect PES/PA Rope – 10.5 mm / 590 ft / Green-Grey-White

Platinum Protect PES/PA Rope

Vendor: New England Ropes
SKU: 7360700
Why we like it
The PLATINUM® technology with a mechanical connection between the core and the cover enhances your safety and due to the good handling also makes your work easier.

$894.00

Estimated Time Until Ship: 10 Business Days


Add to Wishlist


About: New England Ropes - Platinum Protect PES/PA Rope

PLATINUM® Technology

This technology is characterized by the permanent mechanical interconnection between the rope‘s core and its cover. Core and cover yarns are interlaced with one another at regular intervals, which keeps any core/cover displacement from happening. These interconnection sites effectively stop any bunching of the cover and core. Thus, PLATINUM® enables the excellent transmission of forces from the cover to the core region and, in this way, prevents any overloading of the cover.

In addition, PLATINUM® also includes the mechanical interconnection of the various twisted cores with one another. This optimizes the distribution of the load among the various cores. The outcome is a dimensionally stable, compact core bundle and thus an equally dimensionally stable, compact rope. PLATINUM® technology makes it possible, for the first time ever, to braid compact, and yet soft and flexible ropes that eliminate any core/cover displacement.

PLATINUM® Protect

The PLATINUM® Protect version featuring a polyester cover has been employed with great success in many domains of work at height.The PLATINUM® Protect version featuring a polyester cover has been employed with great success in many domains of work at height. Especially when it comes to rope access procedures at extreme heights (e.g. window cleaning), PLATINUM® Protect PES/PA is a must-have for every industrial climber because of its novel design and low elongation. The PLATINUM® technology with a mechanical connection between the core and the cover enhances your safety and due to the good handling also makes your work easier.

Features:
  • Better handling
  • Increased safety

Resources

Product Overview - Technology
Product Overview - For Use in Adventure Parks



Specifications

  • Core: Nylon (Polyamide)
  • Cover: Polyester
  • Braid: 32

Certifications

  • EN 1891 A,
  • NFPA 1983:2012
  • 10.5 mm certified with PETZL ASAP (B71+B71AAA) and ASAP Lock (B71ALU) according to EN 353-2

Reference Table

References 10.5 mm 11.5 mm
Cover/core slippage (%) 0 - 0.3% 0 - 0.3%
Elongation (%) <4 <4
Mass of cover material (% by weight) - target value 51 45
Mass of core material (% b weight) - target value 49 55
Mass per unit length (g/m) - target value 78 90
MBL for free length (kN) min. 28 min. 33
MLB with a Figure 8 Knot (kN) min. 18 min. 18
MLB with a stitched TEUFELBERGER termination (kN) min. 25 min. 25
Shrinkage (%) 1.5 - 3.5 1.5 - 3.5
