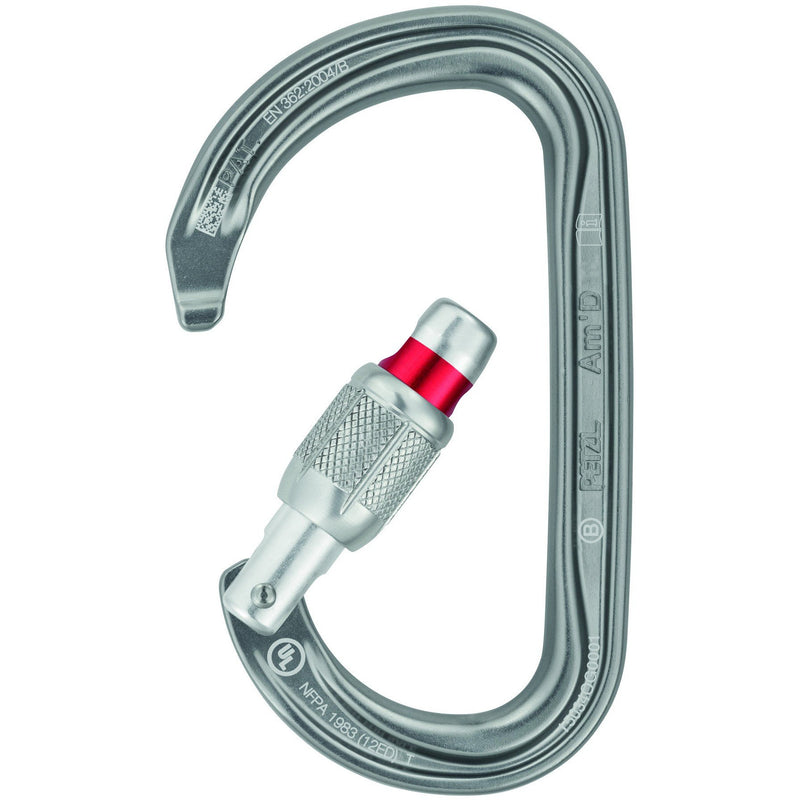

Am'D Carabiner – Screw-Lock / Gray

Am'D Carabiner

Vendor: Petzl
SKU: M34A SL
Why we like it
The asymmetrical aluminum Am'D carabiner has a D shape particularly suited for connection to diverse equipment such as descenders or positioning lanyards. Its fluid interior design and Keylock system facilitate manipulations. The Am’D carabiner is available in three locking systems: SCREW-LOCK manual system or TRIACT-LOCK and BALL-LOCK automatic systems.

$14.95

Estimated Time Until Ship: 2 Business Days


Add to Wishlist


About: Petzl - Am'D Carabiner

D shape is particularly suited for connection to equipment such as descenders or positioning lanyards. It can be connected to the CAPTIV bar to favor positioning of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.

Easier handling:

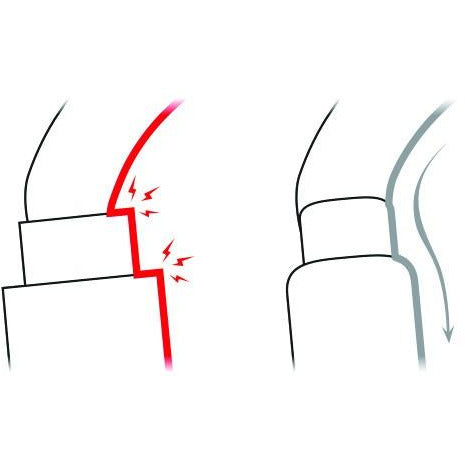

  • Fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner

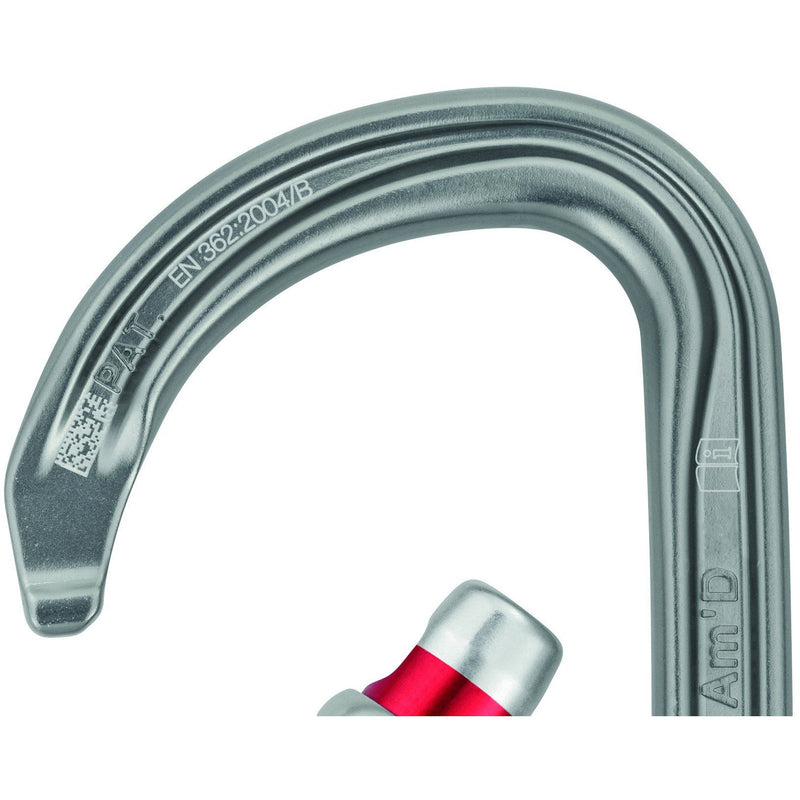

  • Keylock system to avoid any involuntary snagging of the carabiner
H profile:
  • Ensures an improved strength-to-weight ratio
  • Protects markings from abrasion
Available in three different locking systems:

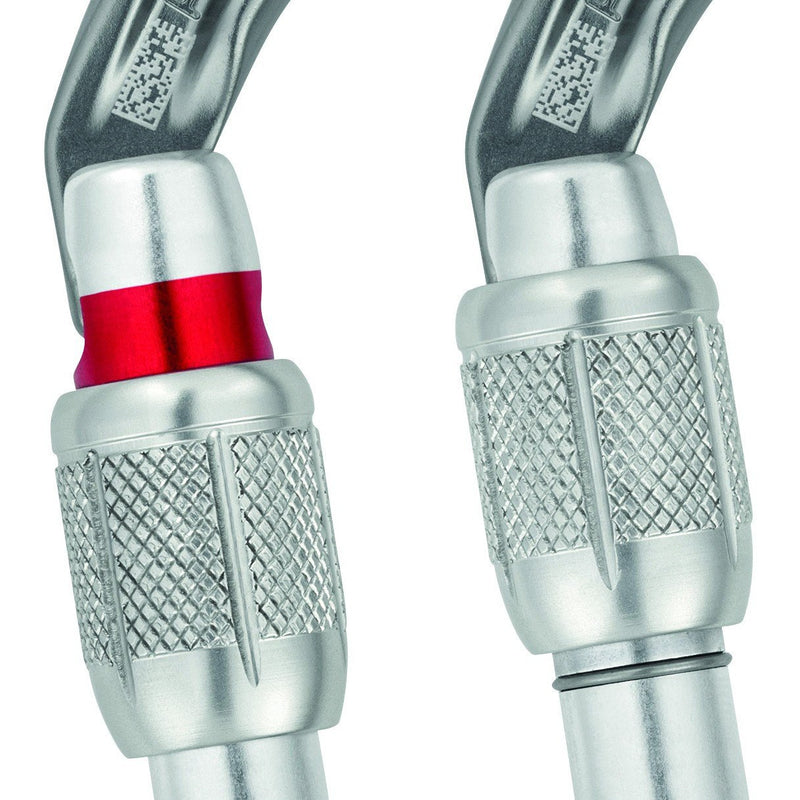

  • SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked
  • TWIST-LOCK: automatic locking with double-action gate opening
  • TRIACT-LOCK: automatic locking with triple-action gate opening
  • BALL-LOCK: automatic locking with triple-action gate opening, with lock indicator

Resources

User Instructions
Product Overview

Inspection Procedure
Inspection Checklist
Maintenance Instructions



Specifications

  • Material(s): aluminum

Certifications

  • CE EN 362
  • EAC
  • NFPA 1983 Technical Use

Reference Table

References M34A SL M34A TL M34A BL M34A SLN M34A TLN M34A RLN
Weight 70 g 75 g 75 g 70 g 75 g 75 g
Locking Mechanism SCREW-LOCK TRIACT-LOCK BALL-LOCK SCREW-LOCK TRIACT-LOCK TWIST-LOCK

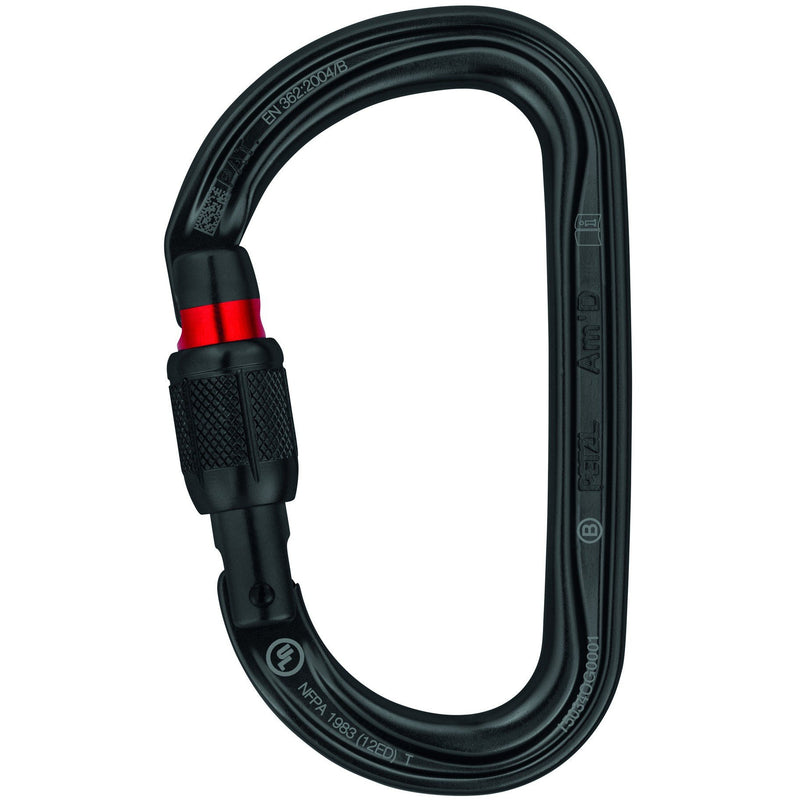

Color(s) Gray Gray Gray Black Black Black
Major axis strength 27 kN 27 kN 27 kN 27 kN 27 kN 27 kN
Minor axis strength 8 kN 8 kN 8 kN 8 kN 8 kN 8 kN
Open gate strength 8 kN 8 kN 8 kN 8 kN 8 kN 8 kN
Gate opening 25 mm 24 mm 25 mm 25 mm 24 mm 25 mm
Guarantee 3 years 3 years 3 years 3 years 3 years 3 years
Packing 1 1 1 1 1 1
