Am'D Pin-Lock Carabiner – Individual

Am'D Pin-Lock Carabiner

Vendor: Petzl
SKU: M34A PL
Why we like it

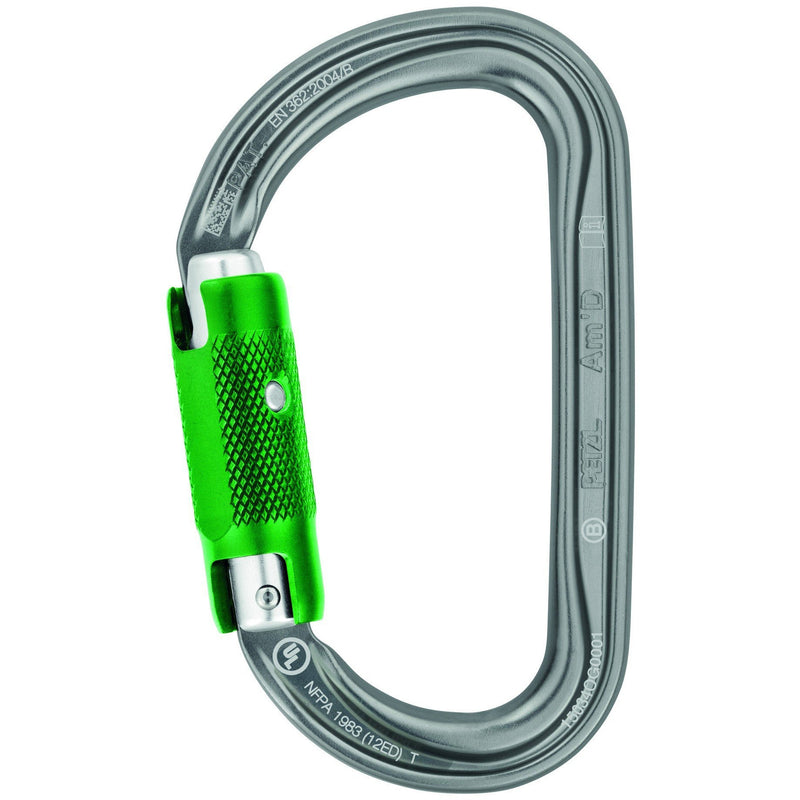

The Am'D PIN-LOCK asymmetrical aluminum carabiner is designed for use with groups. It secures the connection of the user thanks to its PIN-LOCK system, which can only be opened by the operator with a specific unlocking tool.

$29.95

Estimated Time Until Ship: 2 Business Days


Add to Wishlist


About: Petzl - Am'D Pin-Lock Carabiner

Carabiner designed for use with groups:

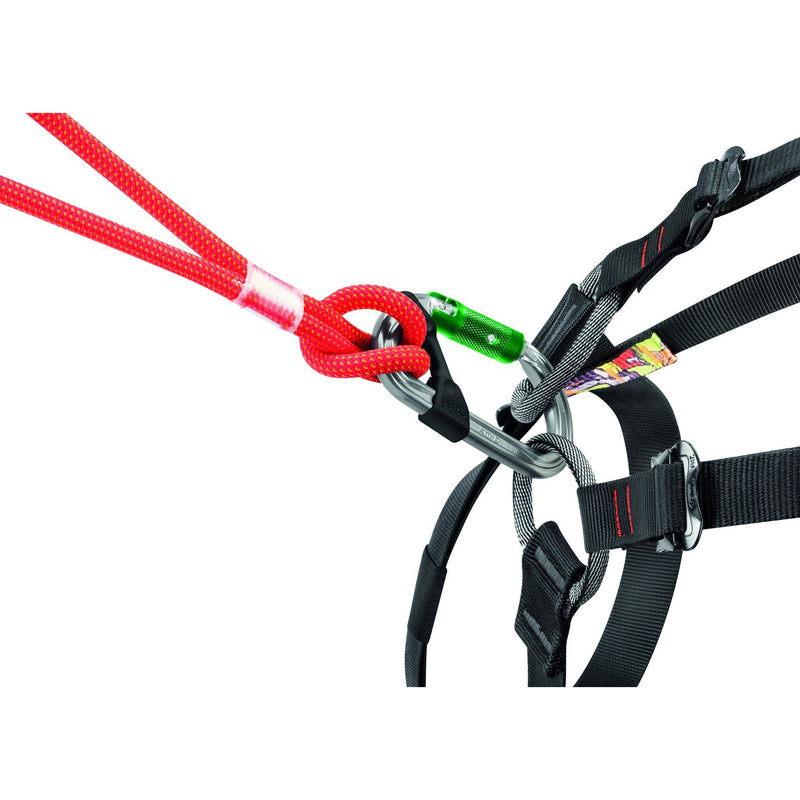

  • To fasten a harness (in combination with the CAPTIV positioning bar)
  • To connect a trolley to a continuous lifeline
Secures the connection of the user:
  • May be used with a CAPTIV positioning bar to favor loading of the carabiner along its major axis, to limit the risk of it flipping and to keep it integrated with the device
  • PIN-LOCK locking system is unlocked only with a special tool, limiting the risk of the user opening the carabiner
Easy to use by the operator:
  • Keylock system to avoid any involuntary snagging of the carabiner

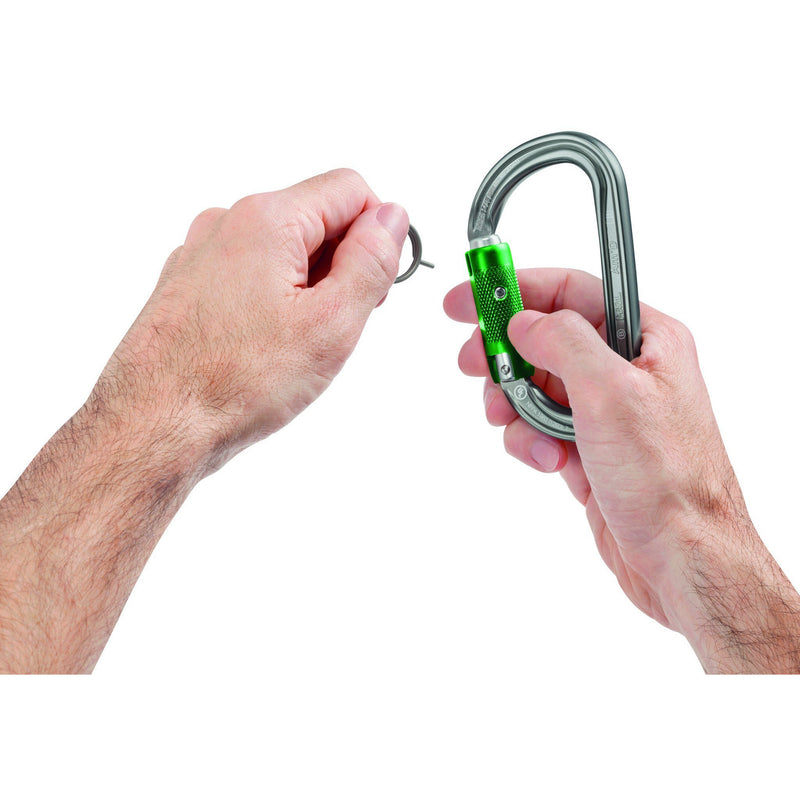

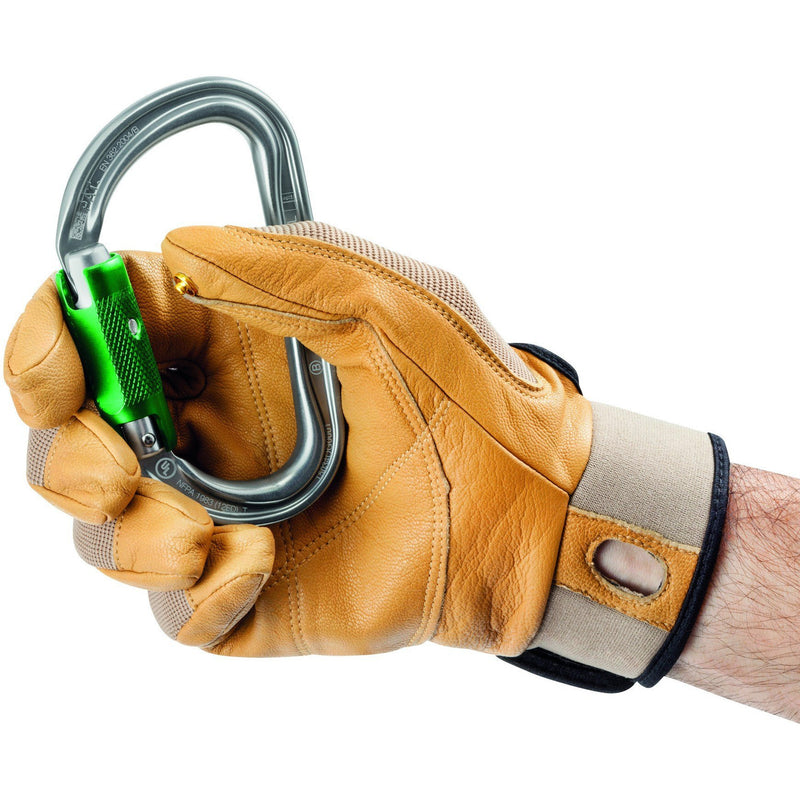

  • Two unlocking tools: for repeated manipulations, the unlocking pin can be installed directly on a glove; for immediate and occasional use, the unlocking ring can be kept on a carabiner on the harness
  • H-profile protects markings from abrasion and ensures improved strength-to-weight ratio

Sold in ready to assemble packs of 10 with two unlocking tools or individually with the unlocking ring only.

Resources

User Instructions
Product Overview

Inspection Procedure
Inspection Checklist
Maintenance Instructions



Specifications

  • Material(s): aluminum

Certifications

  • CE EN 362
  • EAC

Reference Table

References M34AB PL M34A PL
Weight 800 g 80 g
Locking Mechanism PIN-LOCK PIN-LOCK
Color(s) Gray Gray
Major axis strength 27 kN 27 kN
Minor axis strength 8 kN 8 kN
Open gate strength 8 kN 8 kN
Gate opening 25 mm 25 mm
Guarantee 3 years 3 years
Packing 10 1
