Coeur Bolt HCR Hanger – Default Title

Coeur Bolt HCR Hanger

Vendor: Petzl
SKU: P36BH 12
Why we like it

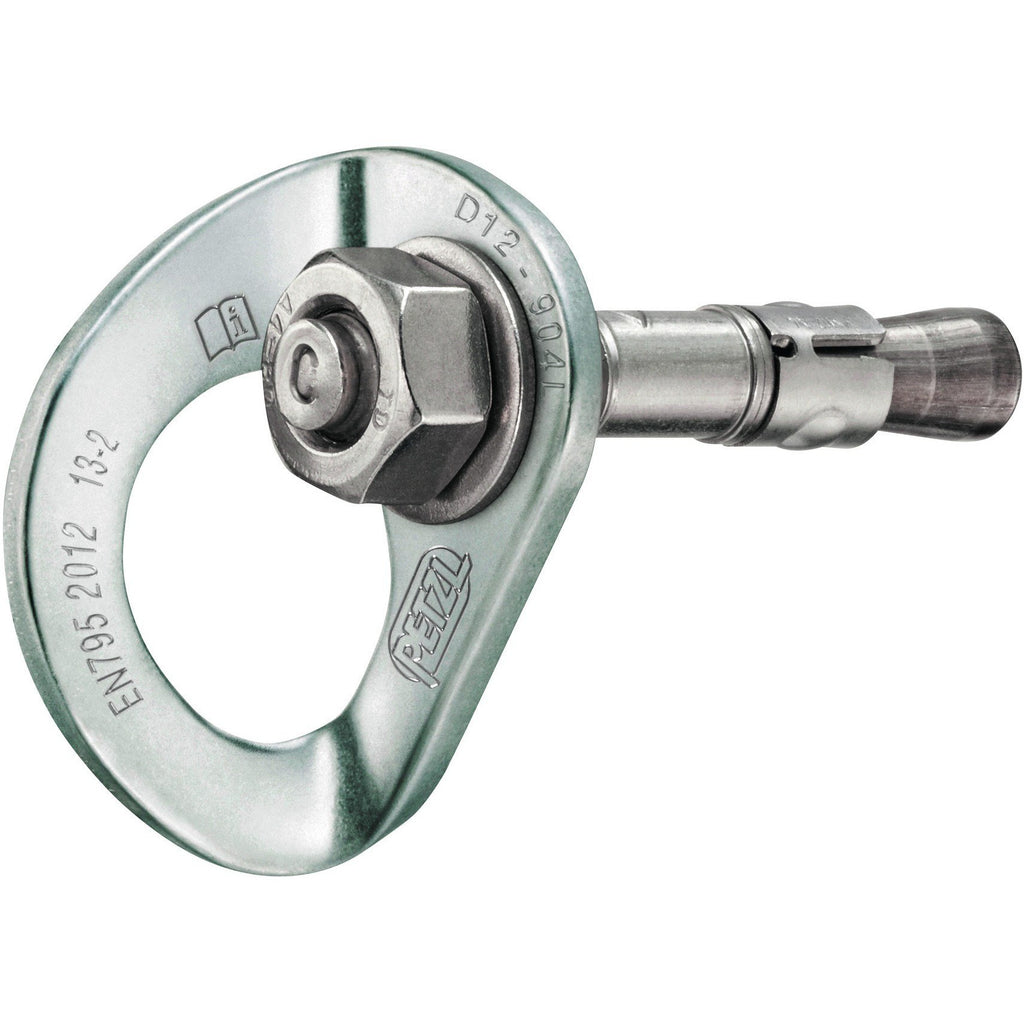

The COEUR BOLT HCR is a High Corrosion Resistance stainless steel anchor composed of a COEUR HCR hanger, a bolt and a nut. It is designed for use in ultra-corrosive environments.

$797.95

Estimated Time Until Ship: 1 Business Days


Add to Wishlist


About: Petzl - Coeur Bolt HCR Hanger

Features:
  • HCR 904 (High Corrosion Resistance) stainless steel assembly designed for ultra-corrosive environments, composed of a COEUR HCR hanger, a bolt and a nut
  • Easy clipping:
    • The wide, ergonomic connection hole facilitates carabiner clipping
    • The width of the hole allows installation of two carabiners at the same time
  • Prevents wear of connectors: the thickness of the hanger and the rounded edges of the connection hole limit wear of connectors
  • Hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use
  • COEUR HCR hanger for 12 mm diameter bolt (P36AH 12), available separately

Resources

User Instructions



Specifications

  • Material(s): 904 HCR (High Corrosion Resistance) stainless steel

Certifications

  • EN 959

Reference Table

References P36BH 12
Diameter 12 mm
Weight 145 g
Length 8.5 cm
Drilling depth 8.5 cm
Drilling diameter 12 mm
Resistance to cutting on concrete 50 MPa 25 kN
Pull-out strength in concrete 50 MPa 25 kN
Guarantee 3 years
Packing 20
