Jag Pulley – Default Title

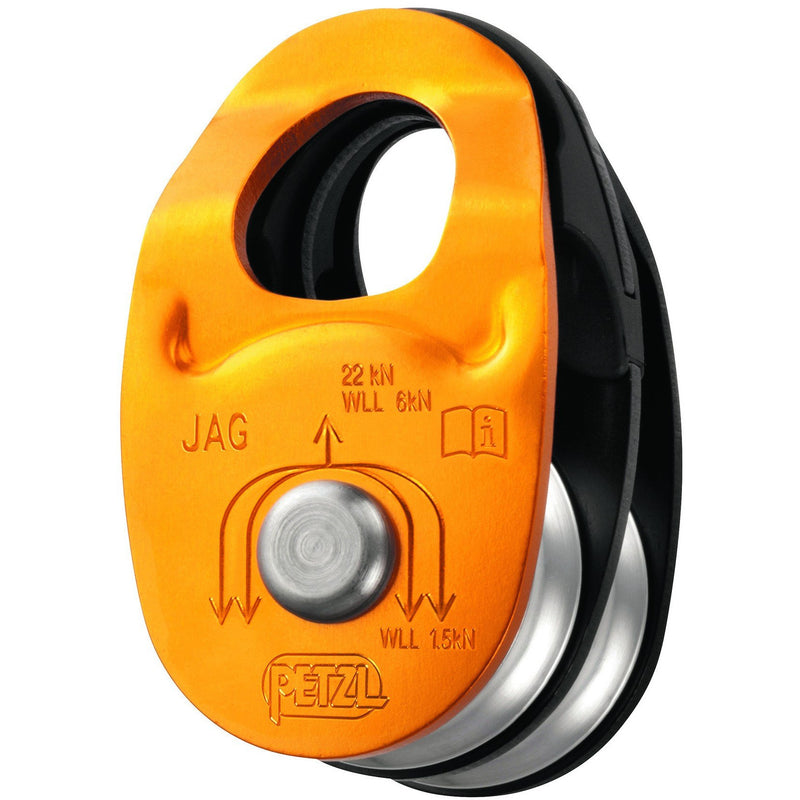

Jag Pulley

Vendor: Petzl
SKU: P45
Why we like it
Double pulley designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system.

$89.95

Estimated Time Until Ship: 1 Business Days


Add to Wishlist


About: Petzl - Jag Pulley

Features:
  • Designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system
  • Sheaves mounted on sealed ball bearings for excellent efficiency

Resources

User Instructions
Product Overview
Inspection Procedure
Inspection Checklist
Maintenance Instructions



Specifications

  • Weight: 120 g
  • Material(s): aluminum, nylon
  • Min. rope diameter: 8 mm
  • Max. rope diameter: 11 mm
  • Sheave type: sealed ball bearings
  • Sheave diameter: 25 mm
  • Maximum working load: 2 × 1.5 kN × 2 = 6 kN
  • Breaking strength: 2 × 4 kN × 2 = 16 kN
  • Efficiency: 91 %

Certifications

  • CE EN 12278
  • NFPA 1983 Technical Use

Reference Table

References P45
Guarantee 3 years
Packing 1
