Jag Rescue Kit – 30 m

Jag Rescue Kit

Vendor: Petzl
SKU: K90030
Why we like it

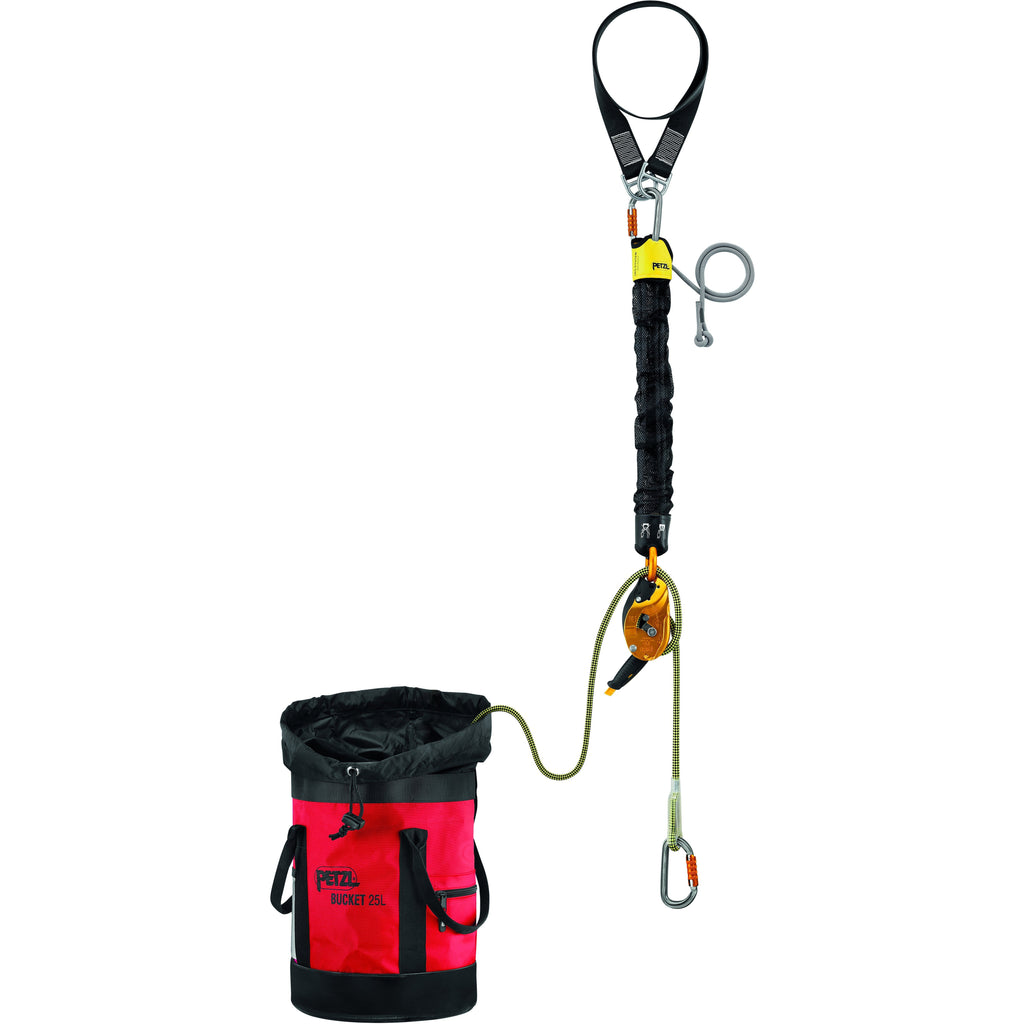

The JAG RESCUE KIT is a ready-to-use reversible rescue kit designed to easily pick off and lower a victim. It contains a JAG SYSTEM haul kit, a RING OPEN gated ring, an I’D S descender, a CONNEXION FIXE 150 cm anchor strap, a BUCKET bag and an AXIS 11 mm rope with two sewn terminations.

$759.95

Estimated Time Until Ship: 1 Business Days


Add to Wishlist


About: Petzl - Jag Rescue Kit

The JAG RESCUE KIT is a ready-to-use reversible rescue kit designed to easily pick off and lower a victim. It contains a JAG SYSTEM haul kit, a RING OPEN gated ring, an I’D S descender, a CONNEXION FIXE 150 cm anchor strap, a BUCKET bag and an AXIS 11 mm rope with two sewn terminations. It is available in three lengths: 30, 60 and 5 meters.

Designed to easily pick off and lower a victim:
  • Pick-off with the JAG SYSTEM haul kit, whose 4:1 mechanical advantage and excellent sheave efficiency allow the user effort to be divided by 4 when raising a victim in order to release him
  • Evacuation with the I'D S descender, whose ergonomic handle allows the user to easily control the rope's running speed during evacuation. Anti-panic function activates if the user pulls too hard on the handle, which brakes and stops the descent automatically
Always ready to use for quick intervention:
  • JAG SYSTEM equipped with flexible cover that prevents any risk of tangling
  • Rope is pre-installed in the RING OPEN gated ring to allow better control of the descent and provide a system that dœs not easily come apart
  • BUCKET bag for transporting the kit
  • Kit comes loaded and ready to use

Available in three rope length versions: 30, 60 and 120 meters

Rescue kit contents:
  • a JAG SYSTEM haul kit
  • a RING OPEN gated ring
  • an I’D S descender
  • an AXIS 11 mm rope with two sewn terminations
  • a CONNEXION FIXE 150 cm anchor strap
  • a BUCKET 25 liter bag for the 30 and 60 meter versions, and a 35 liter bag for the 120 meter version

Video

Resources

User Instructions
Inspection Procedure
Inspection Checklist
Maintenance Instructions



Specifications

  • Maximum working load: 2 kN
  • Material(s): aluminum, steel, nylon, polyurethane, polyester

Reference Table

Reference K90060 K90060 K90120
Length 30 m 60 m 120 m
Weight 4300 g 6600 g 11300 g
Guarantee 3 years 3 years 3 years
Packing 1 1 1
