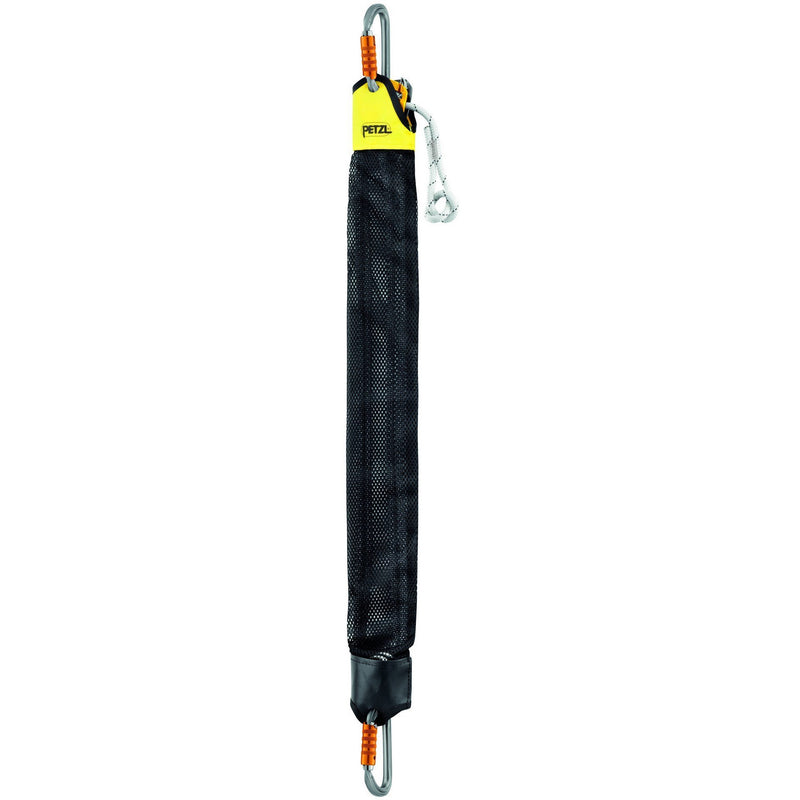

Jag System Haul Kit – 1 m

Jag System Haul Kit

Vendor: Petzl
SKU: P044AA00
Why we like it
Haul kit for pickoffs, making a releasable anchor or tensioning a system, thanks to its 4:1 mechanical advantage and excellent efficiency (sheaves with sealed ball bearings). The collapsed kit is very compact, making usage possible even if the distance to the anchor is very short. The JAG SYSTEM haul kit is quick and easy to deploy: it is ready to use thanks to the flexible cover that prevents any risk of tangling.

$299.95

Estimated Time Until Ship: 1 Business Days


Add to Wishlist


About: Petzl - Jag System Haul Kit

Haul kit for pickoffs, making a releasable anchor or tensioning a system, thanks to its 4:1 mechanical advantage and excellent efficiency (sheaves with sealed ball bearings). The collapsed kit is very compact, making usage possible even if the distance to the anchor is very short. The JAG SYSTEM haul kit is quick and easy to deploy: it is ready to use thanks to the flexible cover that prevents any risk of tangling. The haul end is color coded for instant identification.

Versatile:
  • Allows pickoffs, making a releasable anchor, tensioning a system
  • Can be coupled with an I'D descender to make a reversible rescue kit to pickoff and evacuate a victim
Hauling effectiveness:
  • 4:1 mechanical advantage allows user effort to be divided by 4
  • Excellent efficiency due to sheaves mounted on sealed ball bearings
  • Deployment possible even when the distance to the anchor is very short, thanks to the extreme compactness of the collapsed system (30 cm)
  • 8 mm lightweight rope. The mechanical advantage guarantees a good grip.
Quick and easy to deploy:
  • Kit always ready to use thanks to the flexible cover that prevents any risk of tangling
  • Haul end immediately identifiable thanks to the yellow color of the end of the cover
  • The ends of the cover hold the connectors in position to facilitate clipping

Comes with two Am'D TRIACT-LOCK auto-locking carabiners.

JAG and JAG TRAXION pulleys also available separately for making long haul systems (e.g. confined space descent/ascent system).

Video

Resources

User Instructions
Product Overview
Inspection Procedure
Inspection Checklist
Maintenance Instructions



Specifications

  • Material(s): aluminum, nylon, polyurethane
  • Rope diameter: 7.7 mm
  • Sheave type: sealed ball bearings
  • Working load: 6 kN
  • Breaking strength: 16 kN
  • Efficiency: 91 %

Certifications

  • EN 1496, EAC

Reference Table

References P044AA00 P044AA01 P044AA02
Collapsed Length 0.32 m 0.34 m 0.40 m
Deployed Length 1 m 2 m 5 m
Weight 610 g 805 g 1460 g
Guarantee 3 years 3 years 3 years
Packing 1 1 1
