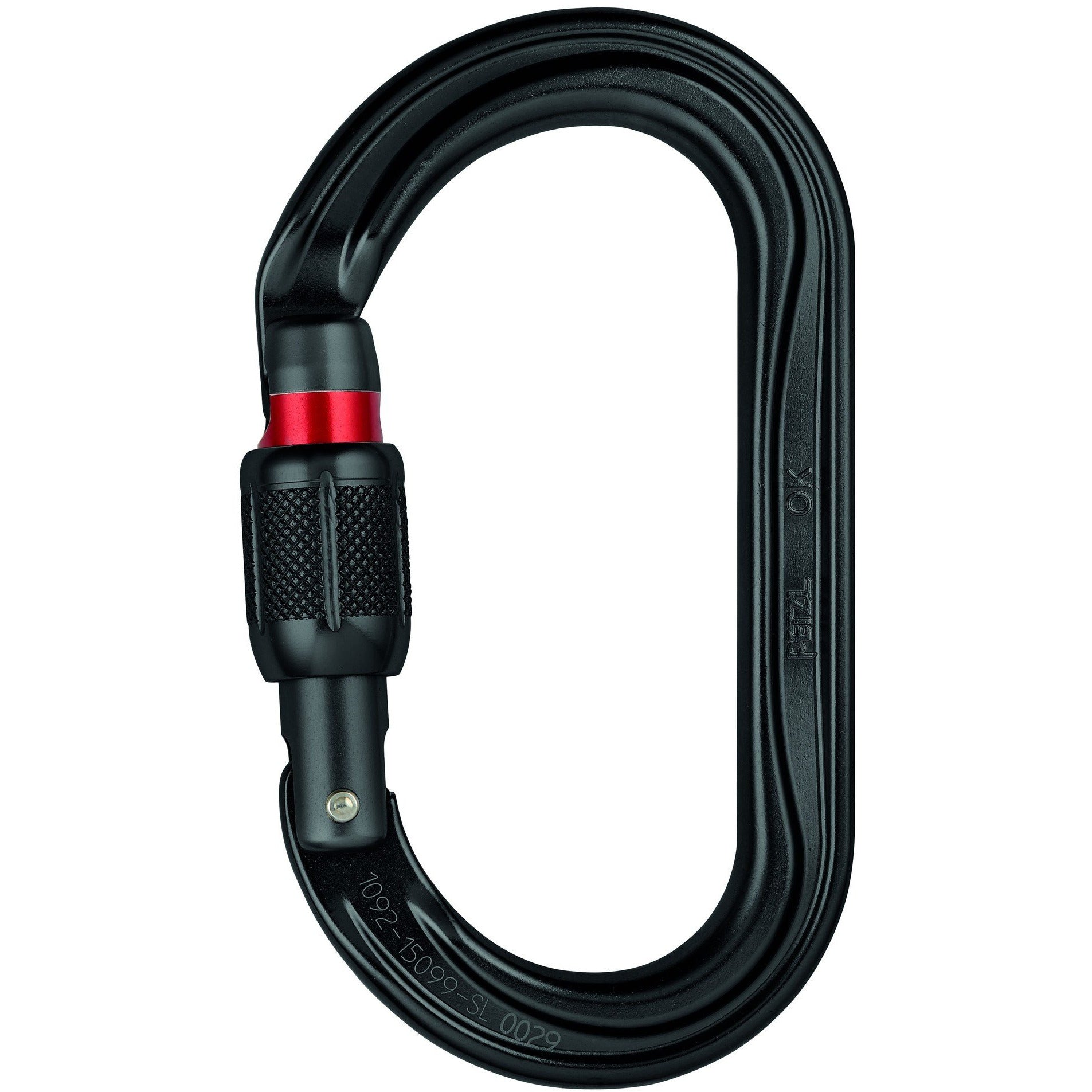

Ok Carabiner – Screw-Lock / Gray

Ok Carabiner

Vendor: Petzl
SKU: M33A SL
Why we like it
Many pulleys need an oval-shaped carabiner to work properly. The OK carabiner is designed for just that. It is also very useful at belays.

$13.95

Estimated Time Until Ship: 1 Business Days


Add to Wishlist


About: Petzl - Ok Carabiner

Aluminum carabiner whose light weight reduces the weight of equipment the worker at height needs to carry

Symmetrical oval shape allows optimal loading of devices with a wide section, such as pulleys, ascenders and progress capture pulleys

Facilitates manipulations:
  • Fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner
  • Keylock system to avoid any involuntary snagging of the carabiner
  • The H-profile contributes to better grip, protects the markings from abrasion and reduces weight
H profile:
  • Ensures an optimal strength/weight ratio
  • Protects markings from abrasion
Available in three different locking systems:

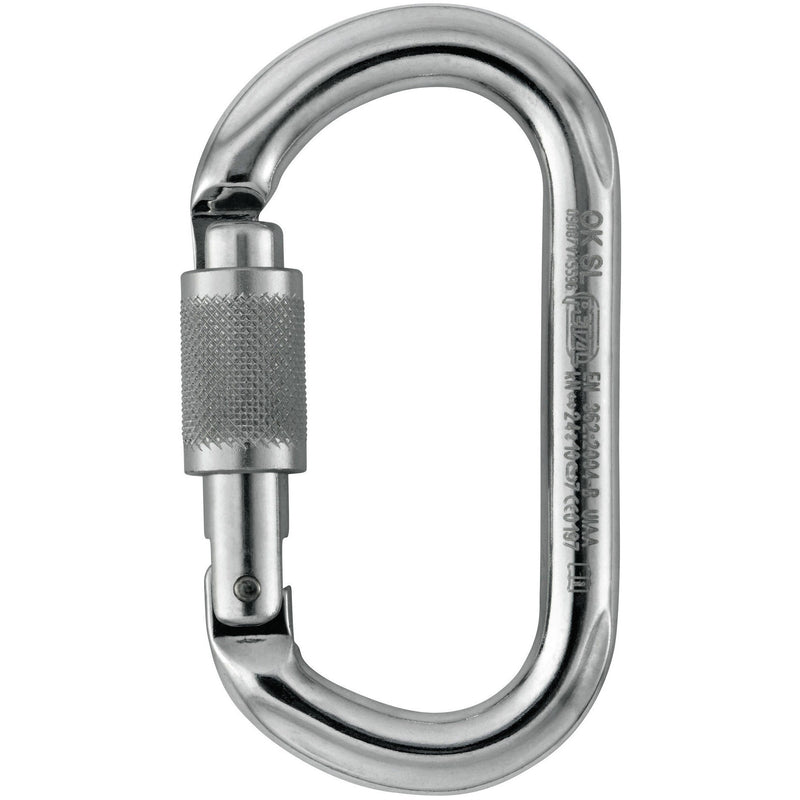

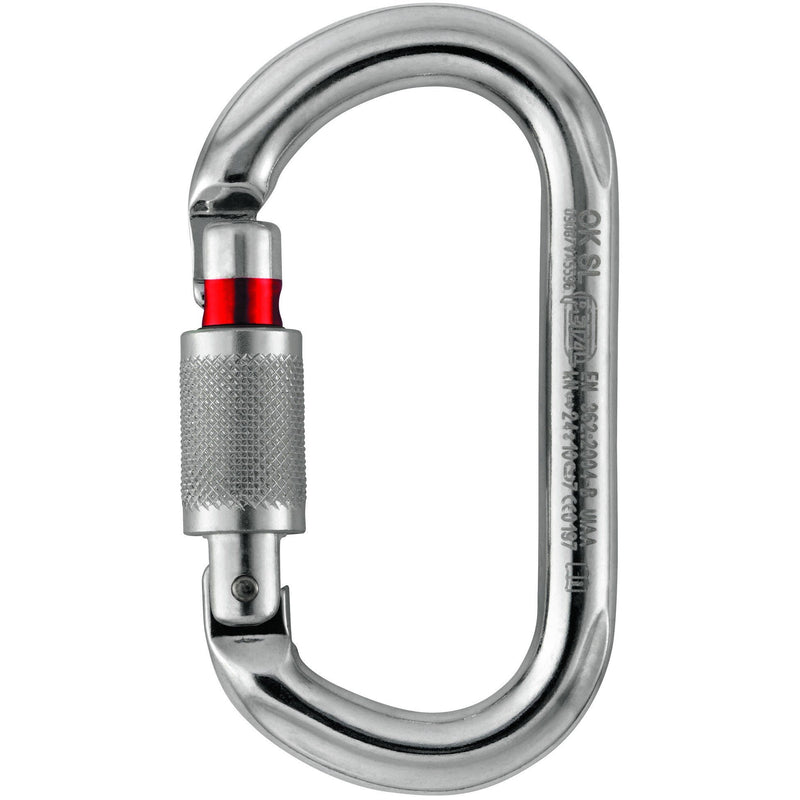

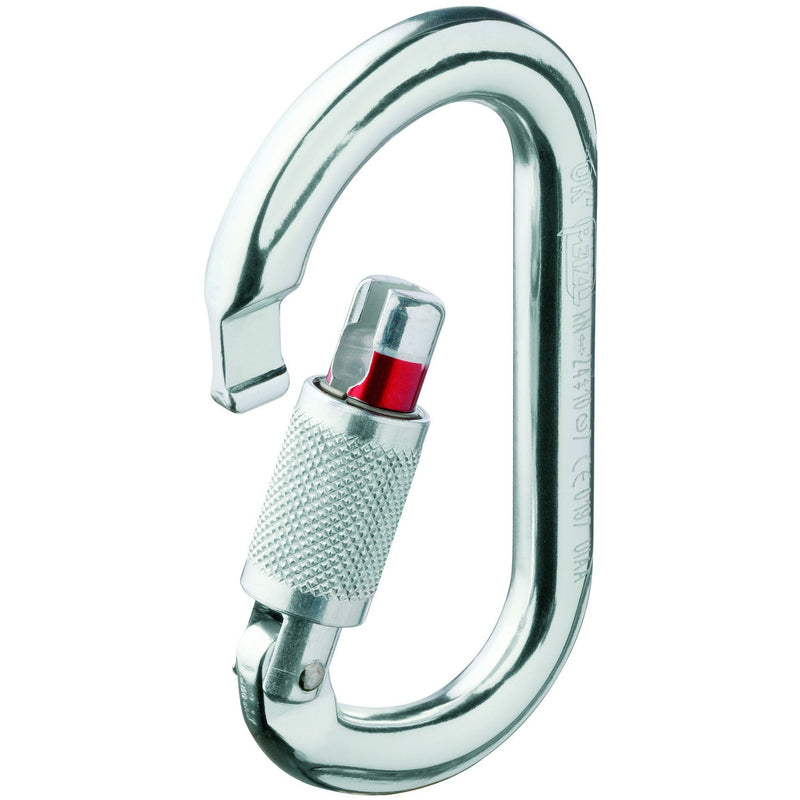

  • SCREW-LOCK: easy-to-open system, locking or not, according to the need of the user. The red band provides a visual warning when the carabiner is unlocked. This system is suitable for difficult environments where contaminants (mud, ice) could cause an automatic locking system to jam.

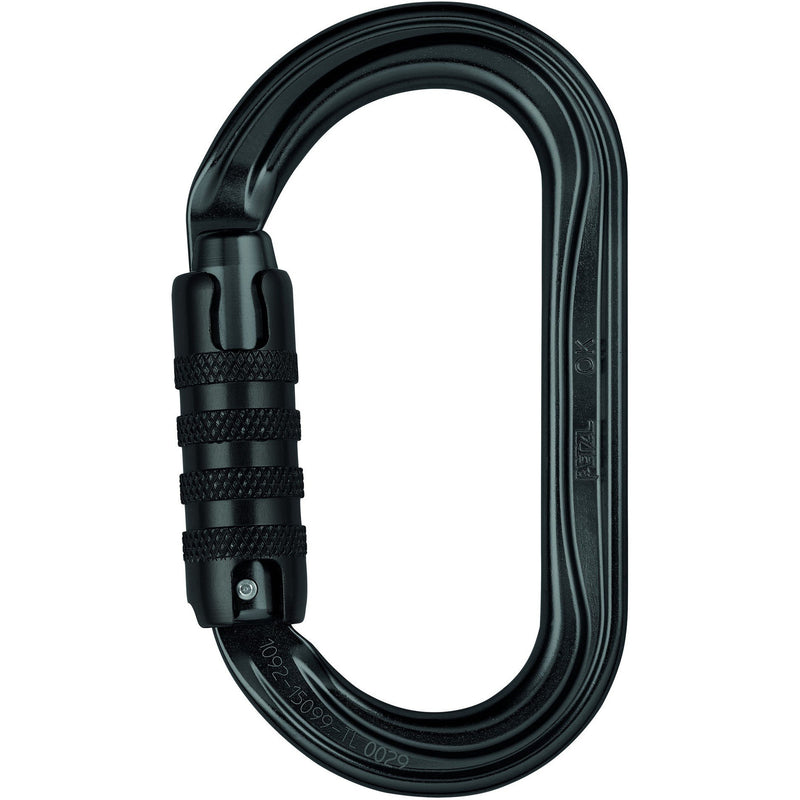

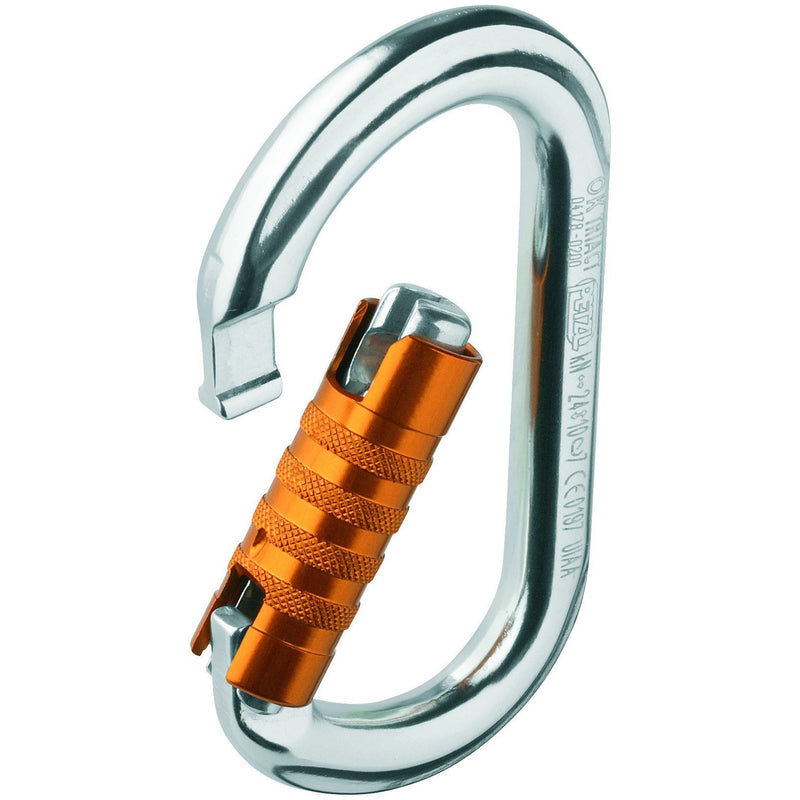

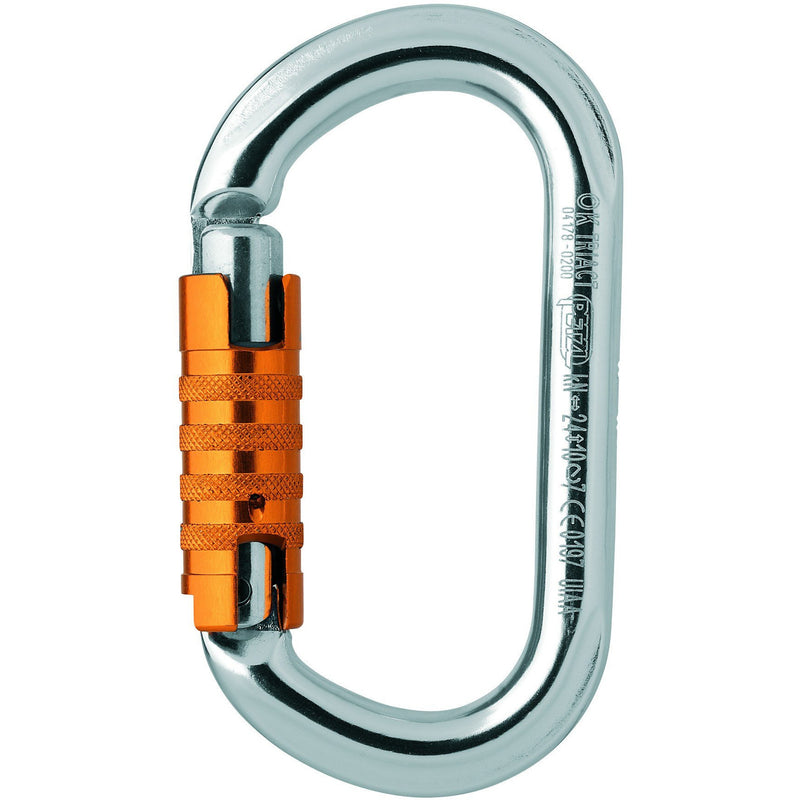

  • TRIACT-LOCK: automatic locking system designed for frequent manipulation. Triple-action opening by raising and turning the sleeve, then pressing on the gate.

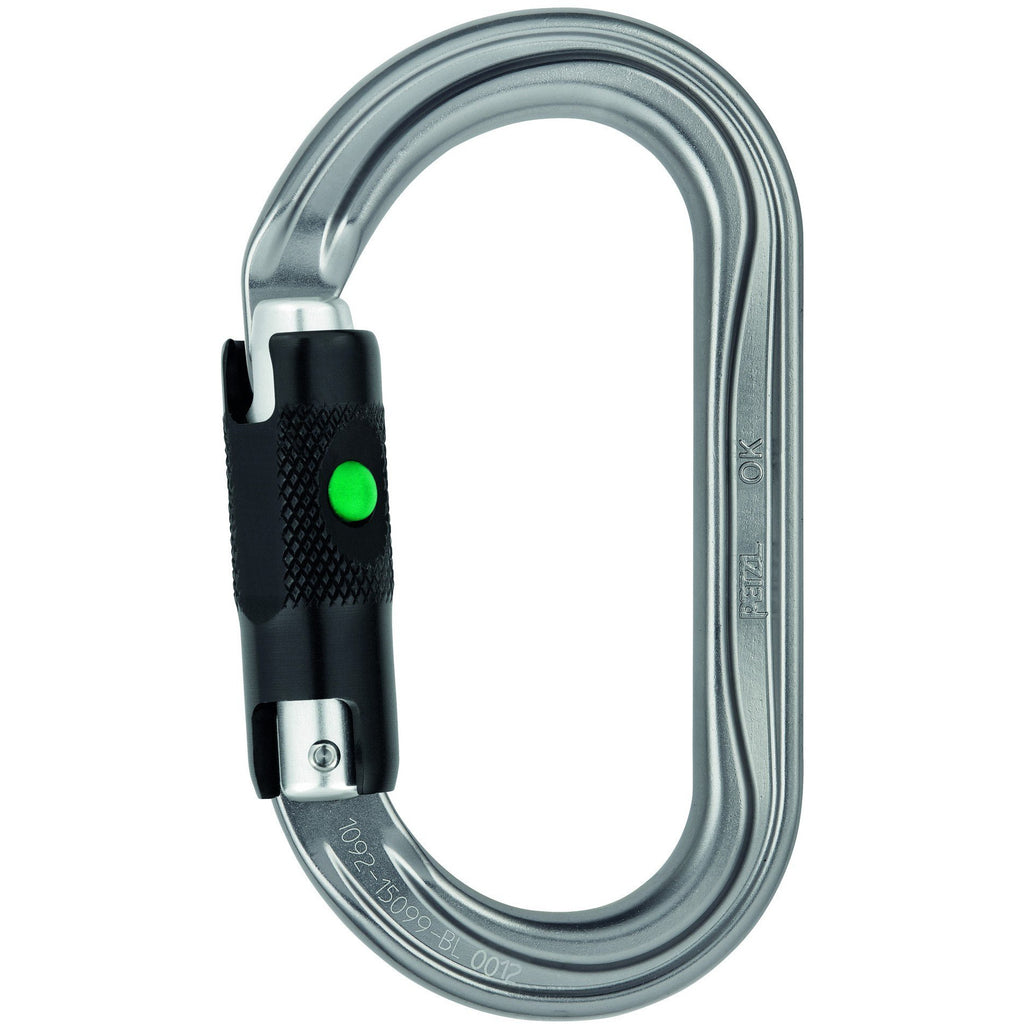

  • BALL-LOCK: automatic locking system designed for frequent manipulation, with lock indicator. Triple-action opening by pressing on the green indicator, turning the sleeve, then pressing on the gate. The green button indicates when the gate is locked.

Resources

User Instructions - SCREW-LOCK
User Instructions - TRIACT-LOCK
Product Overview
Inspection Procedure
Inspection Checklist
Maintenance Instruction



Specifications

  • Material(s): aluminum

Certifications

  • CE EN 362
  • EAC

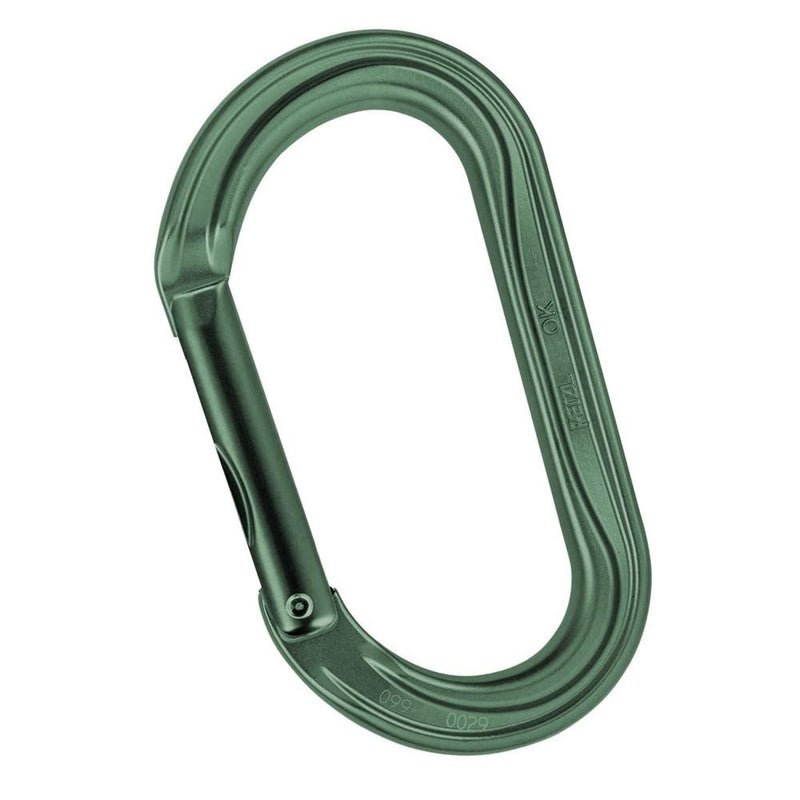

  • CE EN 12275 type B (M33A G - NON-LOCKING)

Reference Table

References M33A SL M33A TL M33A BL M33A SLN M33A TLN M33A G
Weight 70 g 75 g 75 g 70 g 75 g 65 g
Locking Mechanism SCREW-LOCK TRIACT-LOCK BALL-LOCK SCREW-LOCK TRIACT-LOCK Without locking system
Major axis strength 25 kN 25 kN 25 kN 25 kN 25 kN 25 kN
Minor axis strength 8 kN 8 kN 8 kN 8 kN 8 kN 8 kN
Open gate strength 7 kN 7 kN 7 kN 7 kN 7 kN 7 kN
Gate opening 22 mm 22 mm 23 mm 22 mm 22 mm 25 mm
Guarantee 3 years 3 years 3 years 3 years 3 years 3 years
Packing 1 1 1 1 1 1
