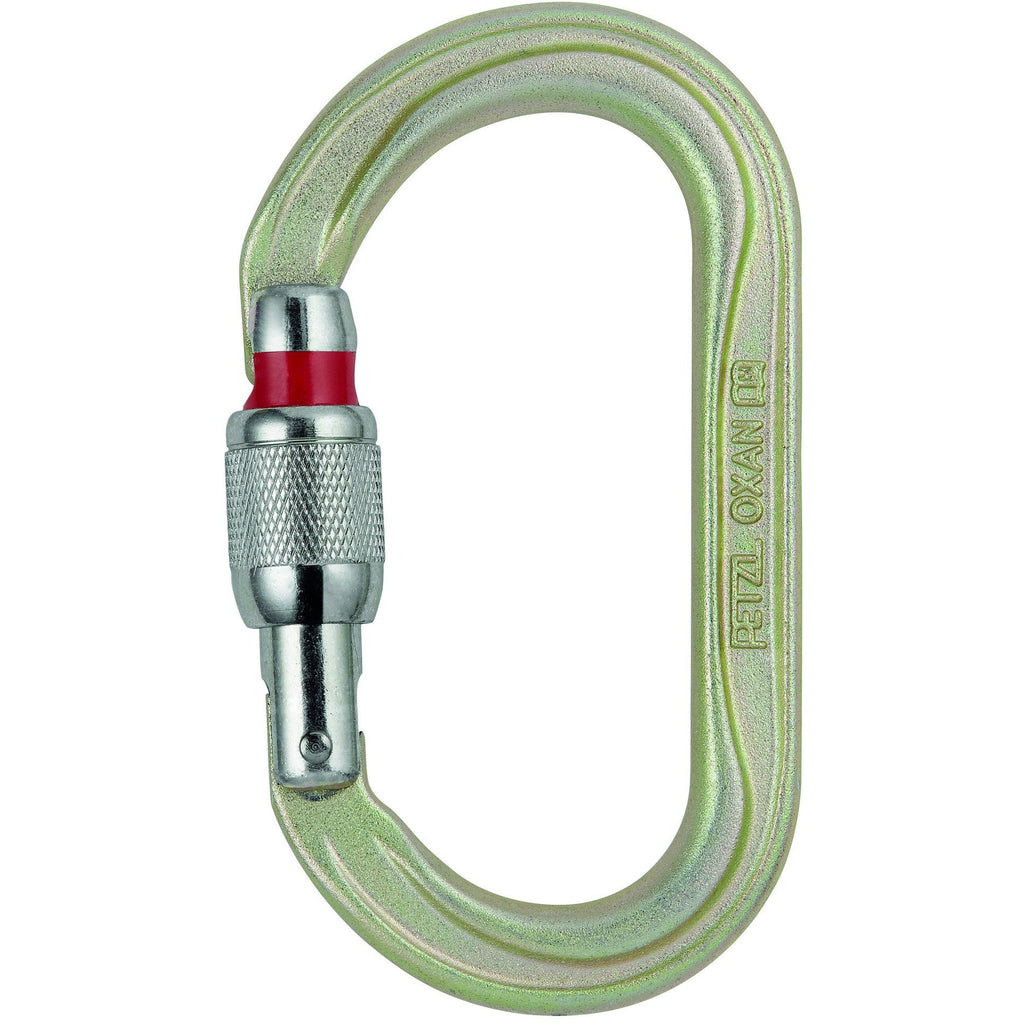

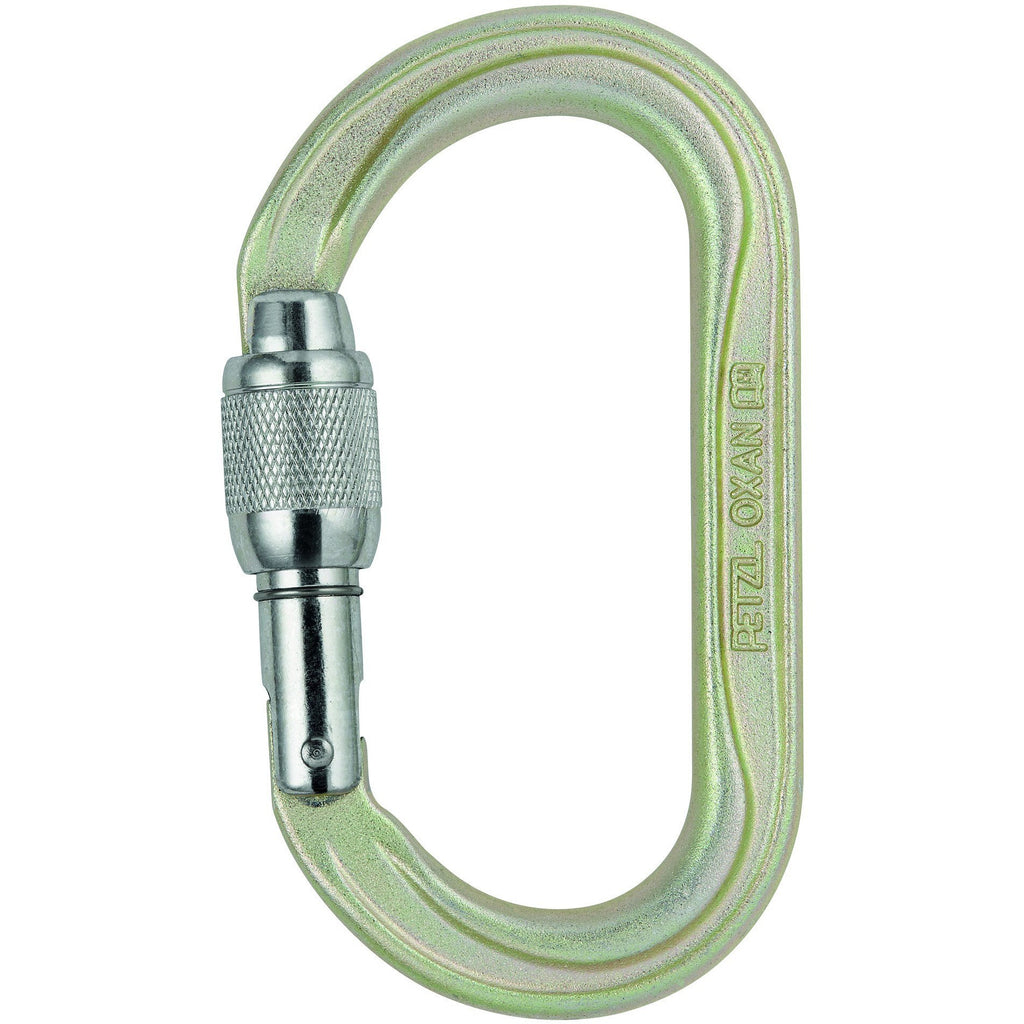

Oxan Carabiner – Screw-Lock / Gold

Oxan Carabiner

Vendor: Petzl
SKU: M72A SL
Why we like it
Rugged and compact, the OXAN carabiner is particularly suited for use in difficult conditions where weight is not an issue: setting fixed anchors, connecting to metal structures...

$14.95

Estimated Time Until Ship: 1 Business Days


Add to Wishlist


About: Petzl - Oxan Carabiner

Rugged and compact, the OXAN carabiner is particularly suited for use in difficult conditions where weight is not an issue: setting fixed anchors, connecting to metal structures... The OXAN carabiner is available in two locking systems: manual SCREW-LOCK system or automatic TRIACT-LOCK system.

High-strength steel carabiner for use in difficult environments, particularly suitable for setting up anchors or for connecting to metal structures

Oval symmetrical shape allows optimal positioning of the carabiner

May be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to keep it integrated with the device, and to limit the risk of it flipping

Facilitates manipulations:
  • Fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner
  • Keylock system to avoid any involuntary snagging of the carabiner
H profile:
  • Ensures an optimal strength/weight ratio
  • Protects markings from abrasion
Two locking systems available:
  • TRIACT-LOCK: automatic locking with triple-action gate opening

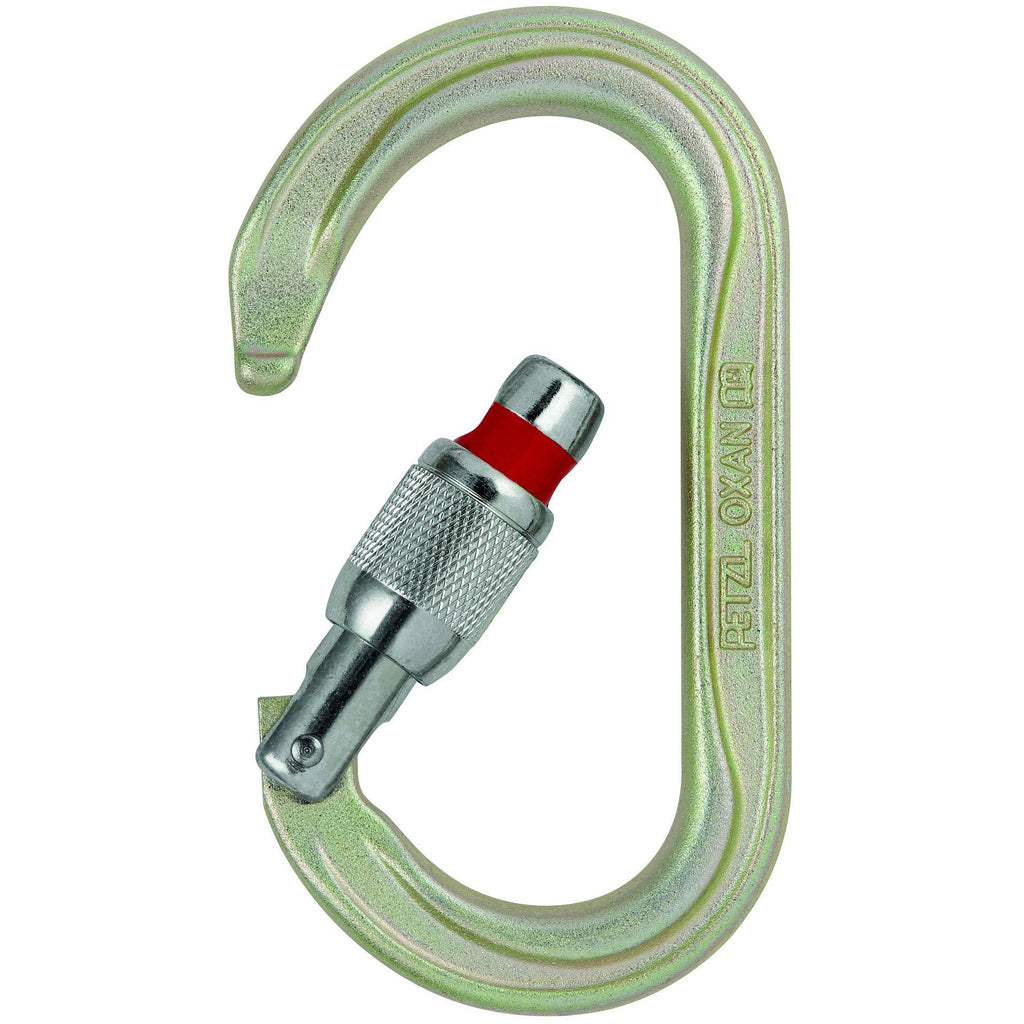

  • SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked

Resources

User Instructions - SCREW-LOCK
User Instructions - TRIACT-LOCK-ANSI
Product Overview
Inspection Procedure
Inspection Checklist
Maintenance Instructions



Specifications

  • Material(s): Steel

Certifications

  • CE EN 362
  • NFPA 1983 Technical Use
  • EAC
  • M72A TLA & M72A TLN only: ANSI Z359.1, CSA
  • Z259.12

Reference Table

References M72A SL M72A TLA M72A SLN M72A TLN
Locking Mechanism SCREW-LOCK TRIACT-LOCK SCREW-LOCK TRIACT-LOCK
Certification(s) CE EN 362, NFPA 1983 Technical Use, EAC CE EN 362, ANSI Z359.1, NFPA 1983 Technical Use, CSA Z259.12, EAC CE EN 362, NFPA 1983 Technical Use, EAC CE EN 362, ANSI Z359.1, NFPA 1983 Technical Use, CSA Z259.12, EAC

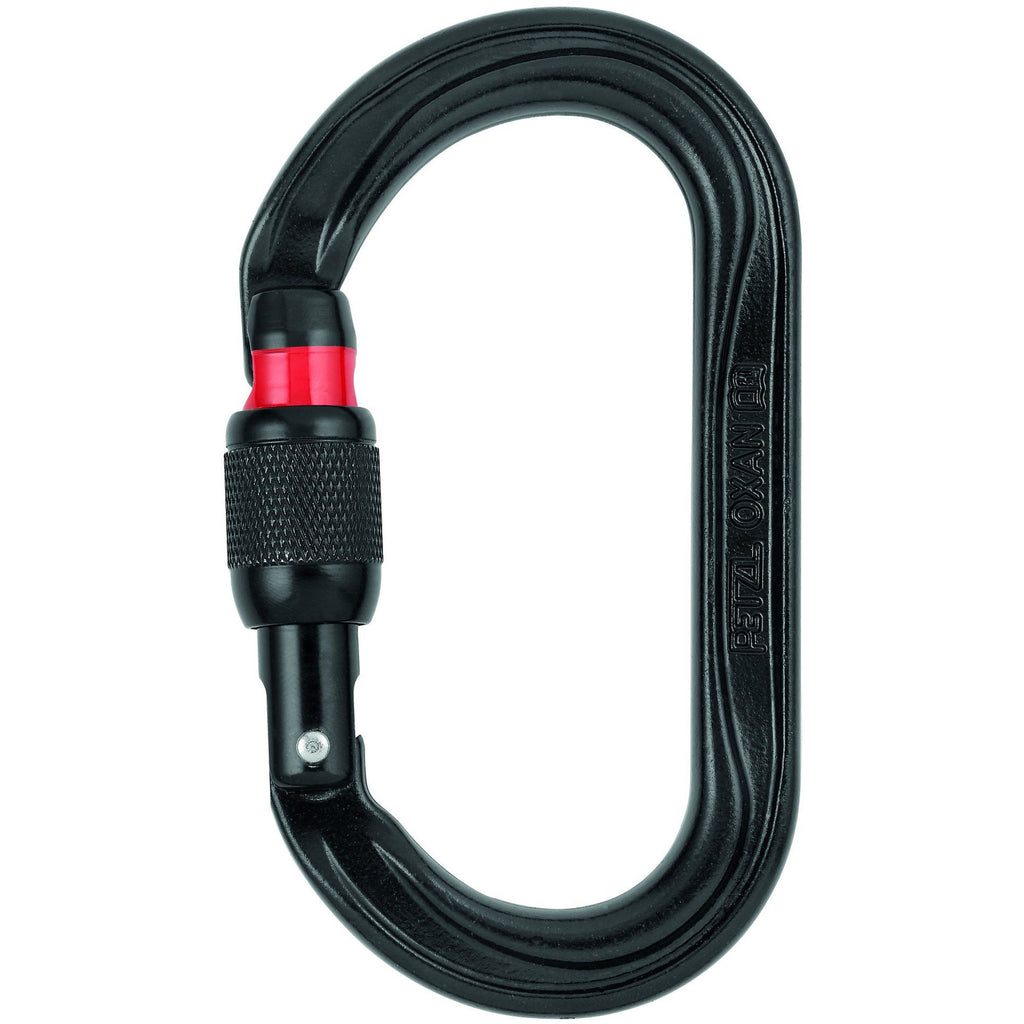

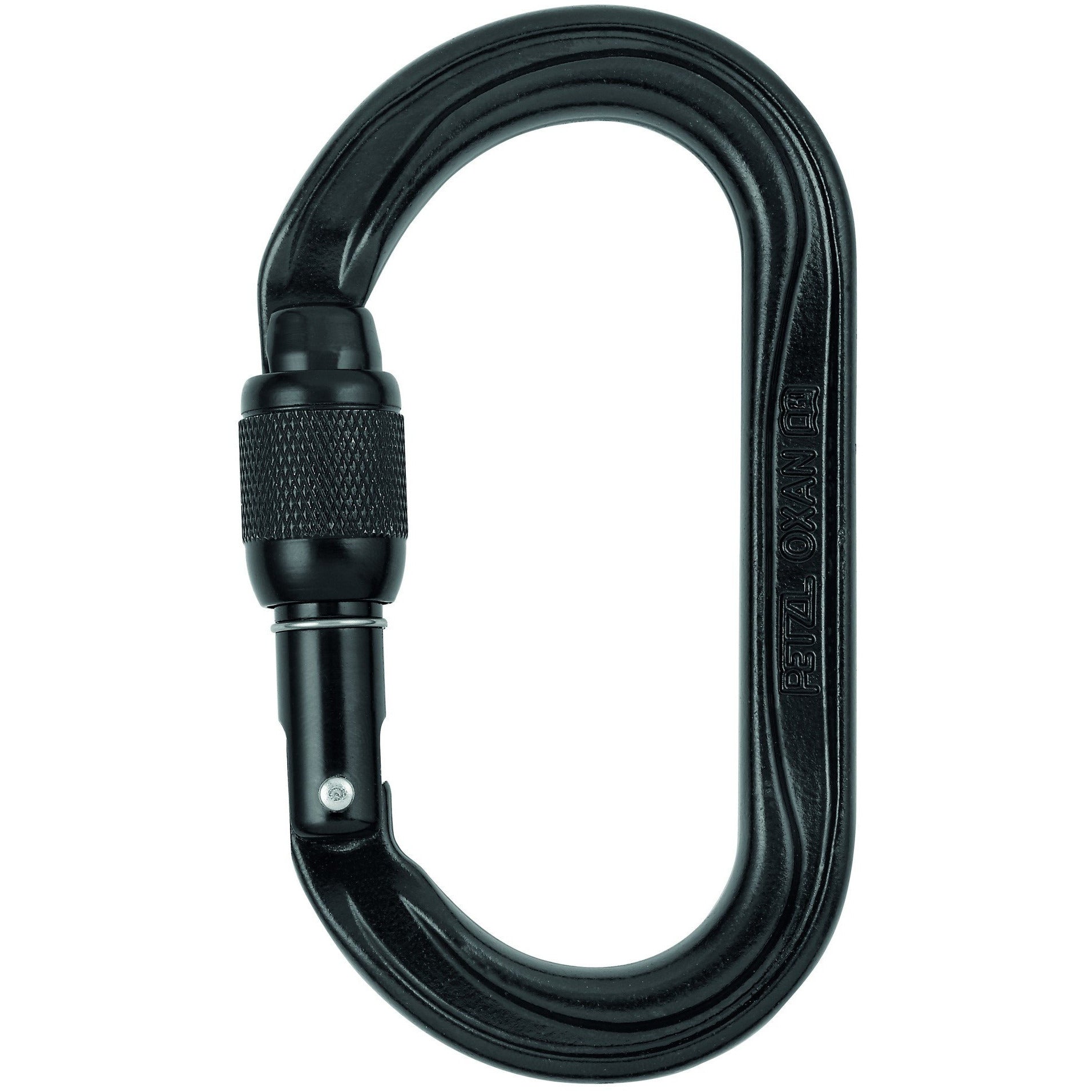

Color(s) Gold Gold Black Black
Major axis strength 40 kN 40 kN 40 kN 40 kN
Minor axis strength 16 kN 16 kN 16 kN 16 kN
Open gate strength 15 kN 15 kN 15 kN 15 kN
Gate opening 23 mm 20 mm 23 mm 20 mm
Weight 185 g 230 g 185 g 230 g
Guarantee 3 years 3 years 3 years 3 years
Packing 1 1 1 1
