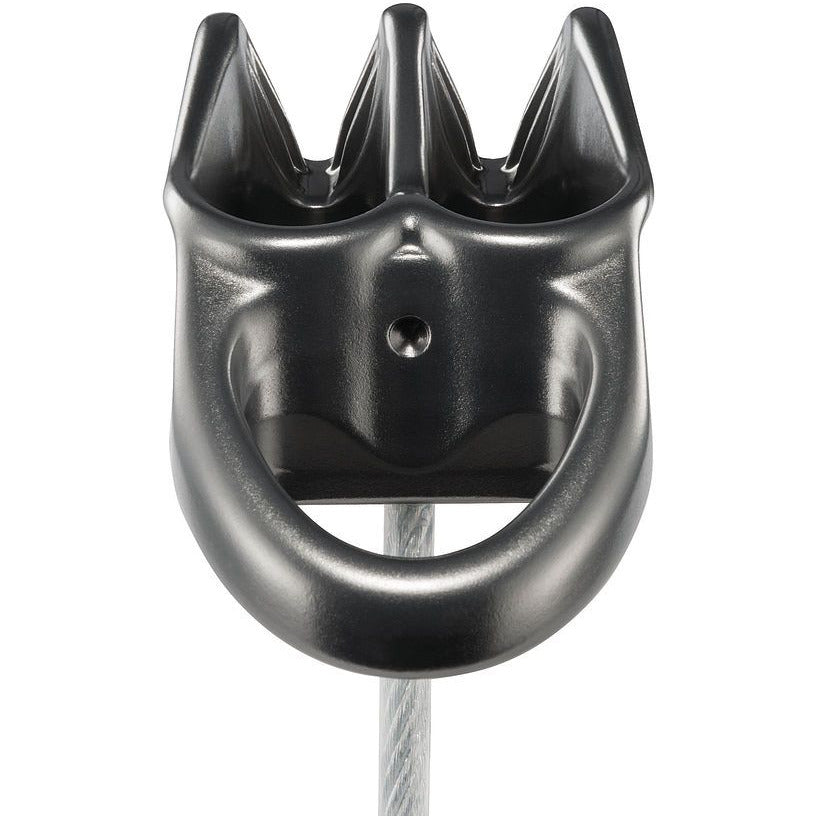

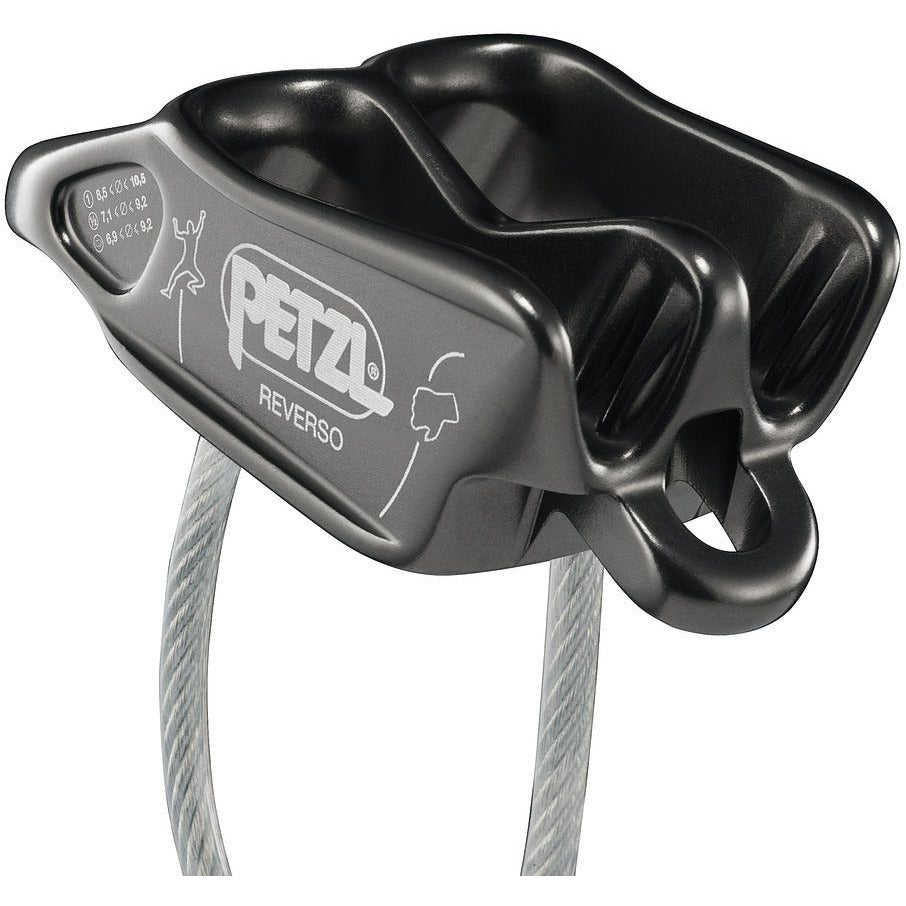

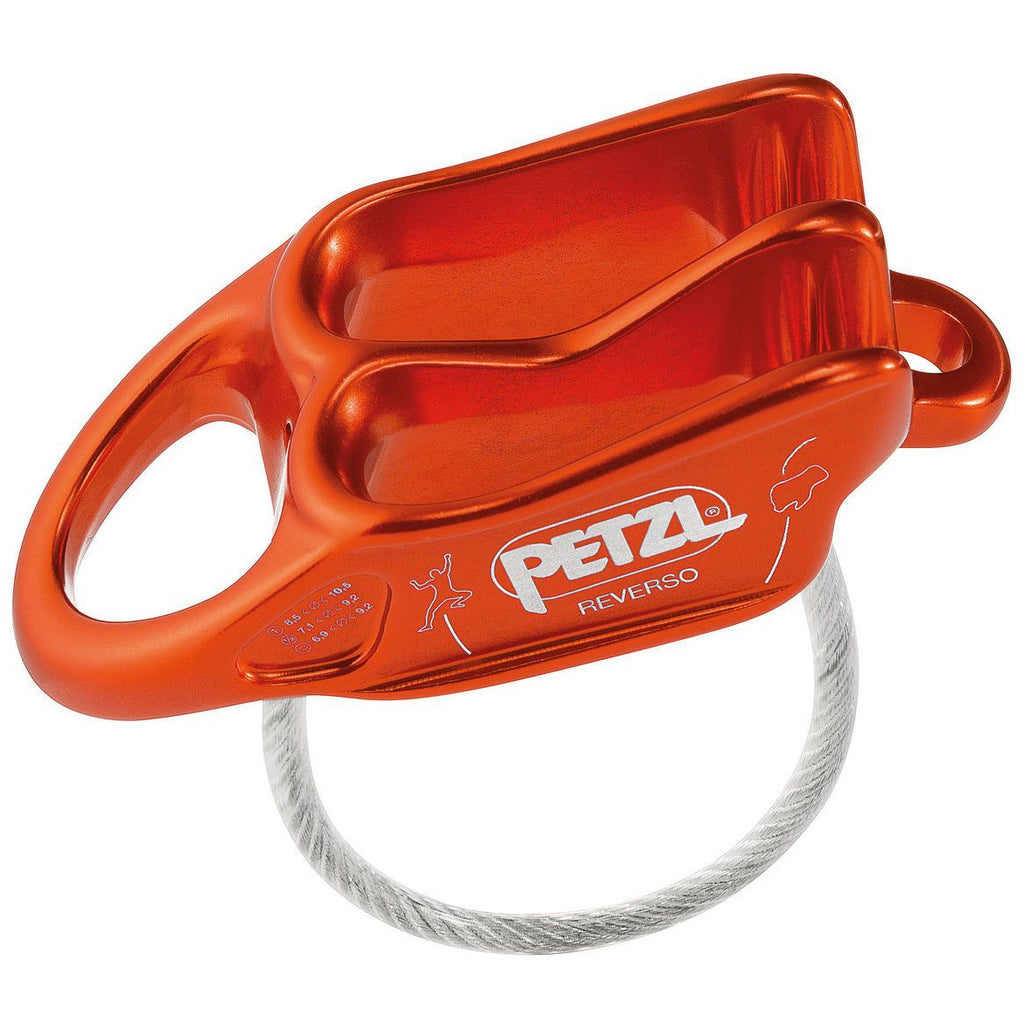

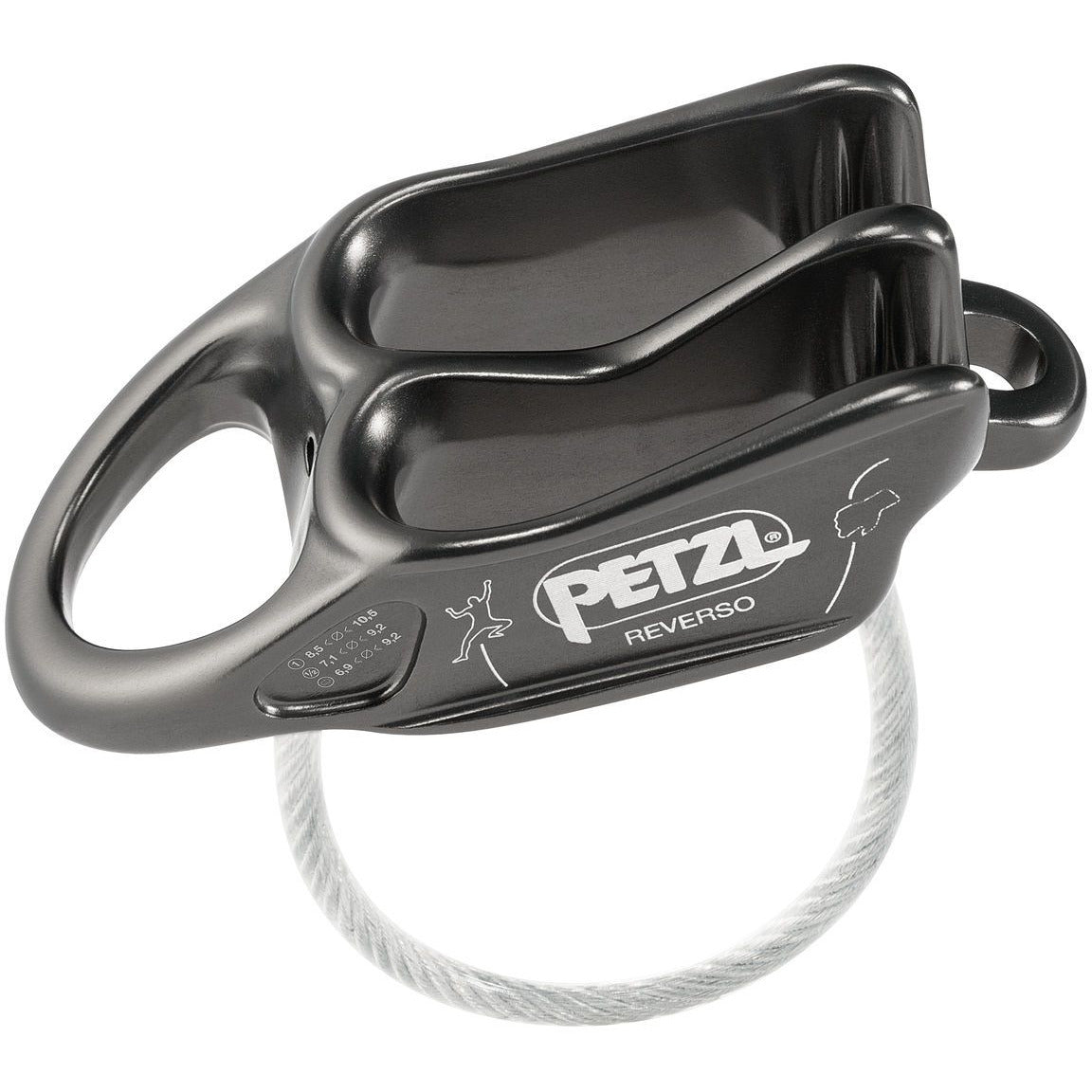

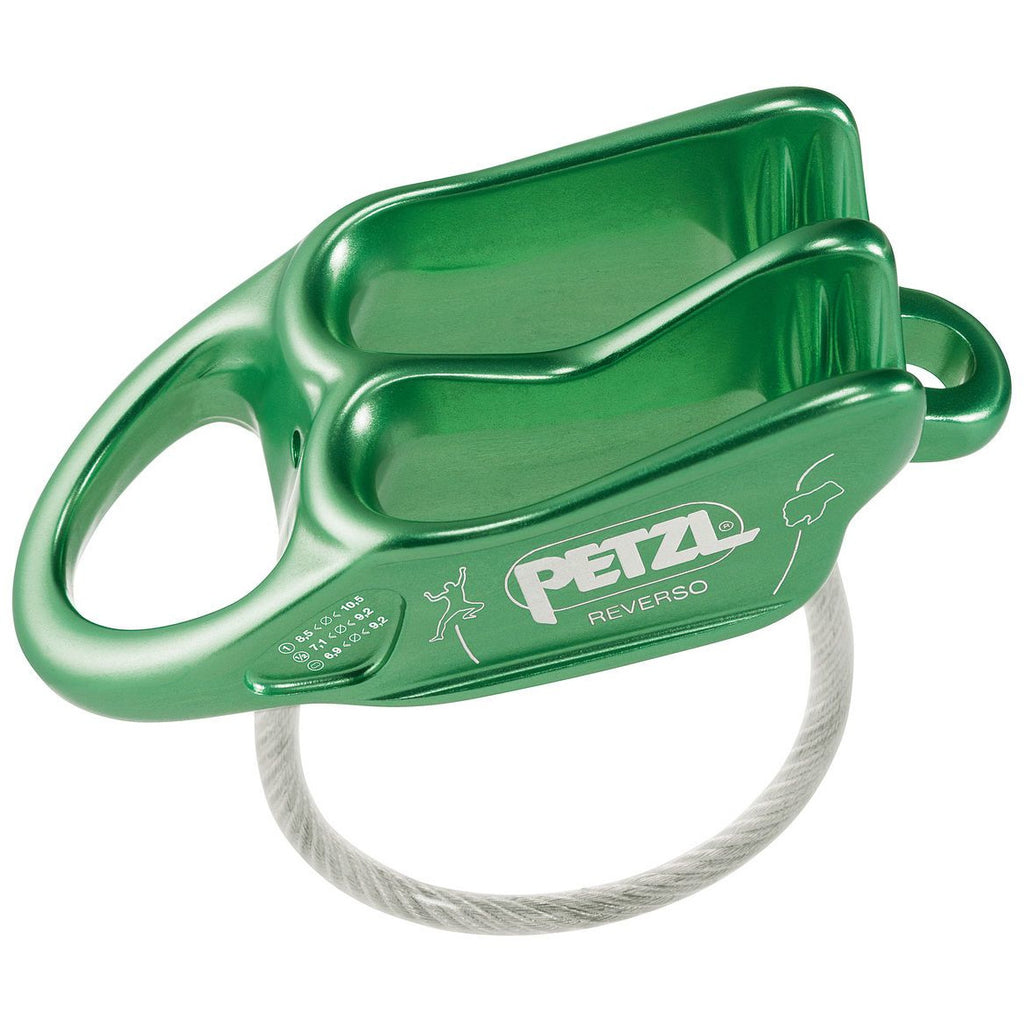

Reverso 4 Belay Device – Apple Green

Reverso 4 Belay Device

Vendor: Petzl
SKU: D17 AG
Why we like it
This belay/rappel device is lightweight and easy to use. V-shaped friction channels, with asymmetrical side grooves, adapt the rope friction for better control.

$29.95

Estimated Time Until Ship: 1 Business Days


Add to Wishlist


About: Petzl - Reverso 4 Belay Device

This belay/rappel device is lightweight and easy to use. V-shaped friction channels, with asymmetrical side grooves, adapt the rope friction for better control (braking adapted to half, twin and single dynamic ropes). Reverso mode for belaying one or two seconds.

Ultra-light design:
  • Minimalist construction
  • Hot-forged aluminum
  • Weight: 59 g
A single device for all rope types:
  • Effective braking on half and twin ropes (7.5 mm or greater diameter)
  • Effective braking on single ropes (8.9 mm or greater diameter)
  • Can belay the leader, one or two seconds and can be used for rappelling

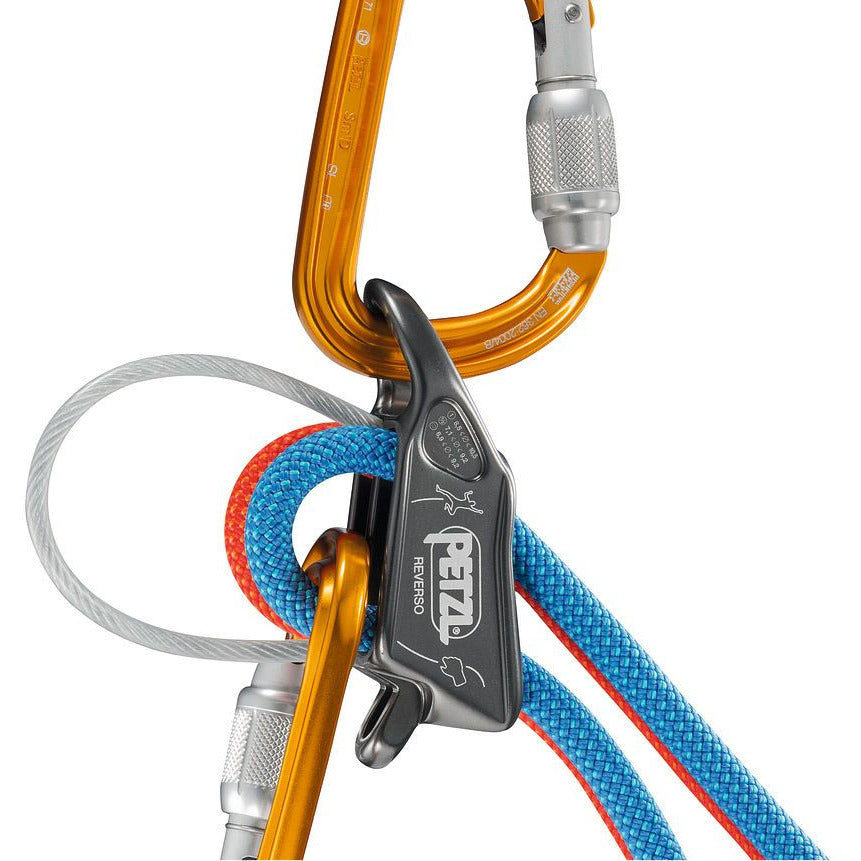

  • Independent and simultaneous belaying of two seconds in Reverso mode
  • For swapping leads (team of 2), offers a quick transition from Reverso mode to belaying the leader
The V-shaped friction channels:
  • Give greater braking power on thin ropes
  • Adapt the braking power on larger diameter ropes
  • Increase the braking pressure on the ropes in Reverso mode
The asymmetric side grooves:
  • Increase the braking power for leader or top-rope falls, or while rappelling
  • Improve rope glide through device when taking up slack

Hole for releasing the device under load: allows a loaded device in Reverso mode to be easily and gradually released with only a carabiner

Rope friendly, facilitates rope maneuvers and rappelling:
  • Will not twist the ropes regardless of the mode used
  • Separates the two strands of rope when belaying and rappelling on two ropes
Intuitive use:
  • Reverso mode aluminum attachment hole is easy to identify
  • Keeper cable keeps the device from moving up the rope when belaying and reduces risk of losing the device
  • Usage diagrams (standard belay and Reverso modes) engraved on device

Use with symmetrical locking carabiners (Am’D or WILLIAM) to maximize efficiency

Resources

User Instructions
Inspection Procedure
Inspection Checklist
Maintenance Instructions



Specifications

  • Weight: 59 g
  • Rope compatibility: - for half ropes (8 mm or greater diameter) and twin ropes (7.5 mm or greater diameter) and on single ropes (8.9 mm or greater diameter)
  • Material(s): hot forged aluminum body

Certifications

  • UIAA

Reference Table

References D17 C D17 VI D17 AG
Color(s) Light Gray Violet Apple Green
Guarantee 3 years 3 years 3 years
Packing 1 1 1
